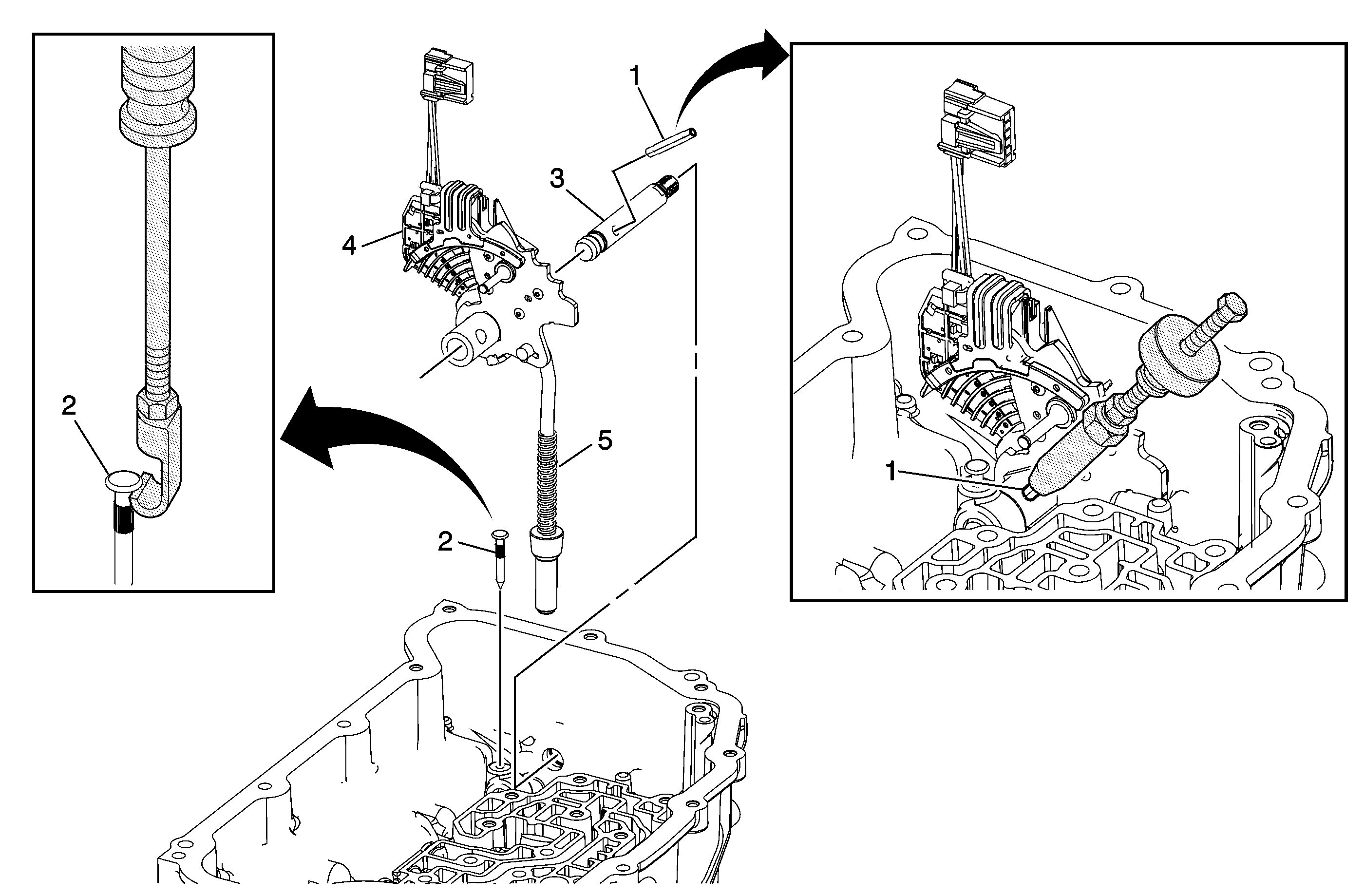

Manual Shaft Detent (w/Shift Position Switch) Lever Assembly Removal
Object Number: 1891310 Size: MF

Manual Shaft Detent (w/Shift Position Switch) Lever Assembly Removal

Callout

Component Name

1

Manual Shaft Detent Lever Hub Pin

Special Tool

DT-48550 Detent Lever Pin Remover

For equivalent regional tools, refer to Special Tools.

2

Manual Shift Shaft Pin

Tip
Discard the pin. It is not reusable.

Special Tools

    • EN-23129 Universal Seal Remover
    • DT-6125-1B Slide Hammer

For equivalent regional tools, refer to Special Tools.

3

Manual Shaft

4

Manual Shaft Detent (w/Shift Position Switch) Lever Assembly

5

Park Pawl Actuator Assembly

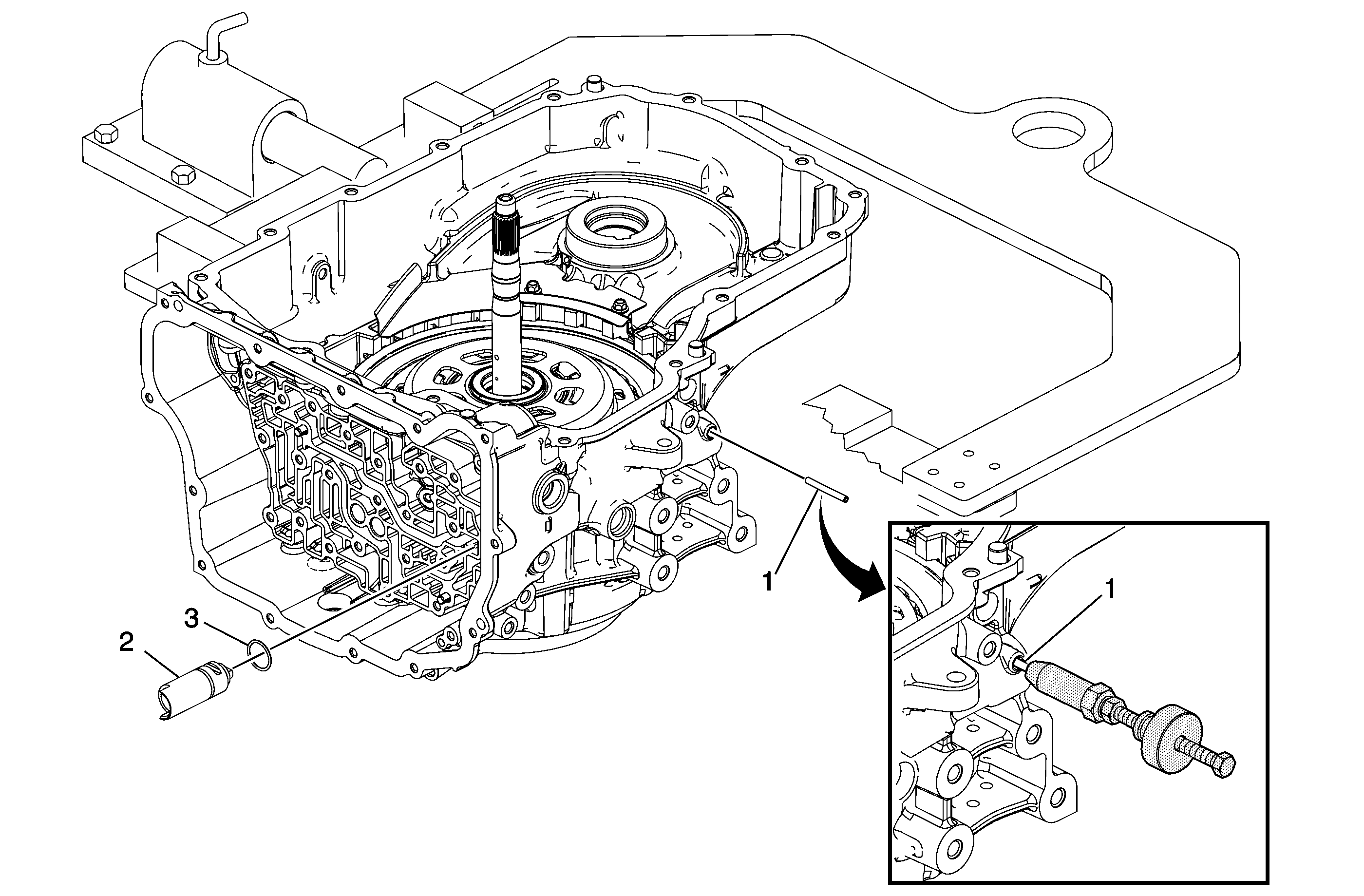

Park Pawl Actuator Guide Removal
Object Number: 1891314 Size: MF

Park Pawl and Actuator Guide Removal

Callout

Component Name

1

Park Pawl Actuator Guide Pin

2

Park Pawl Actuator Guide Assembly

3

Park Pawl Actuator Guide Assembly Seal

Tip
Discard the seal. It is not reusable.
