Makes 🢒 Holden 🢒 2009 🢒 Viva 🢒 Power and Signal Distribution 🢒 Wiring Systems and Power Management 🢒 Ground Distribution Schematics
Figure 1:

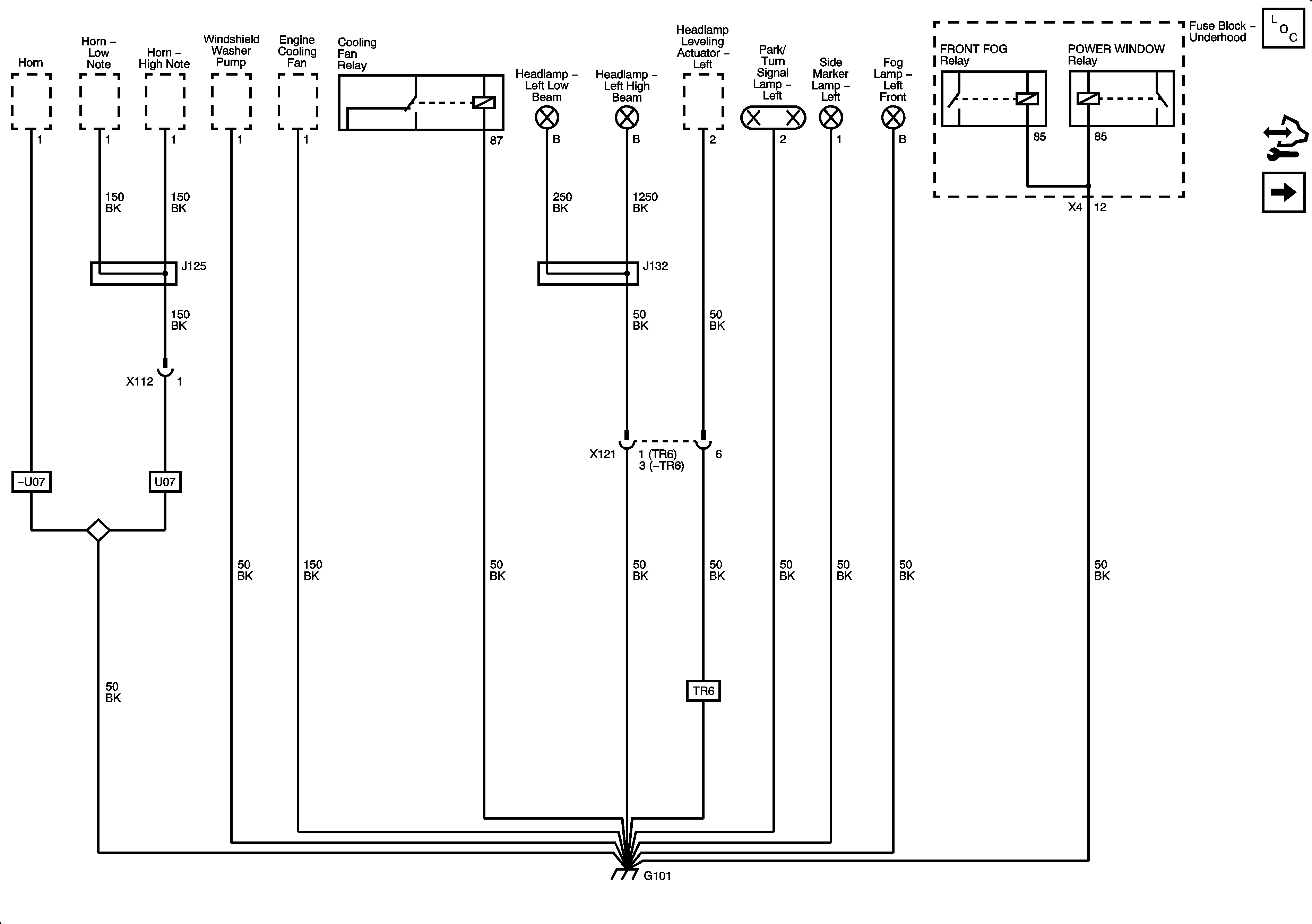

G101
Object Number: 2159175 Size: FS
Figure 2:

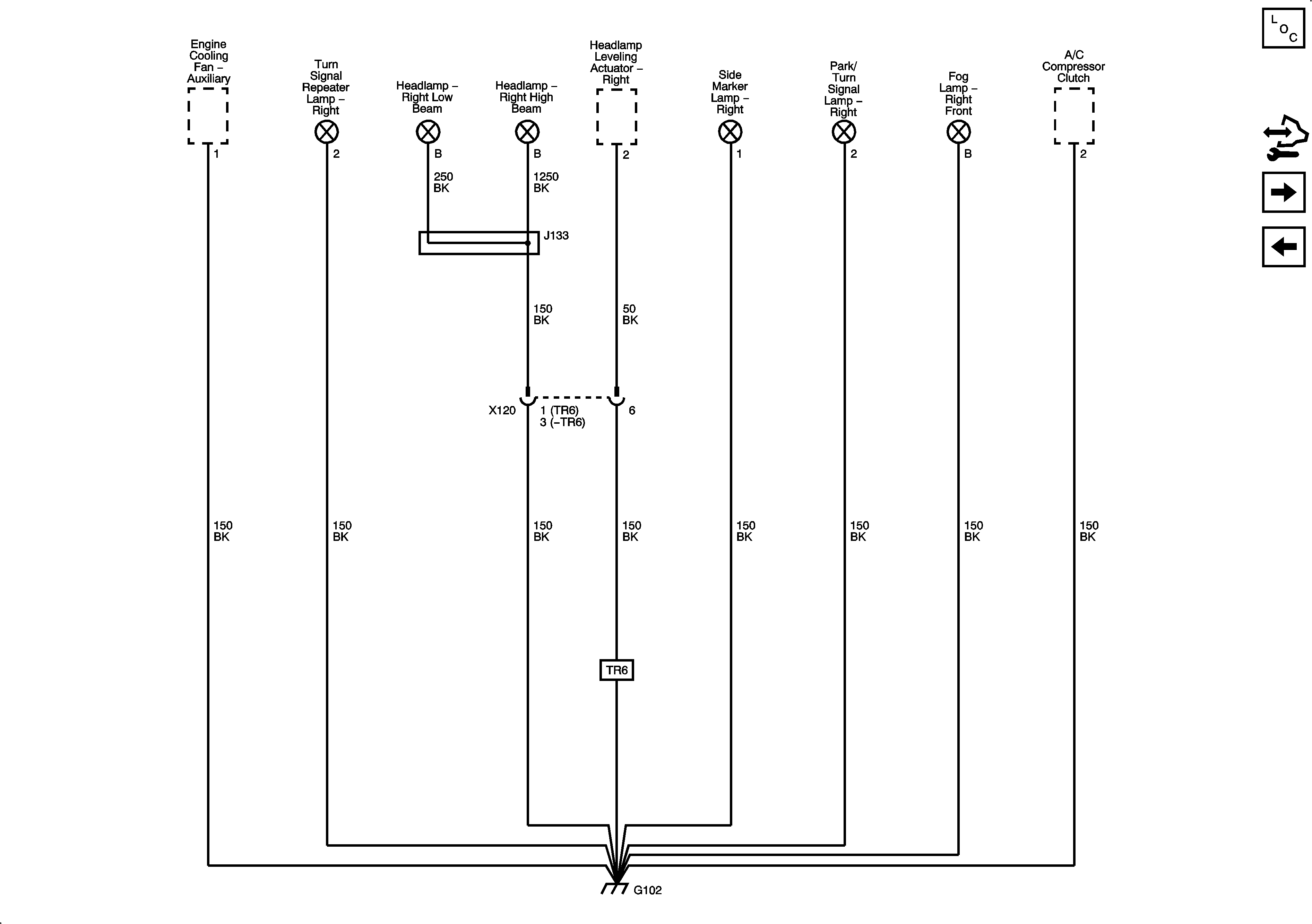

G102
Object Number: 2159179 Size: FS

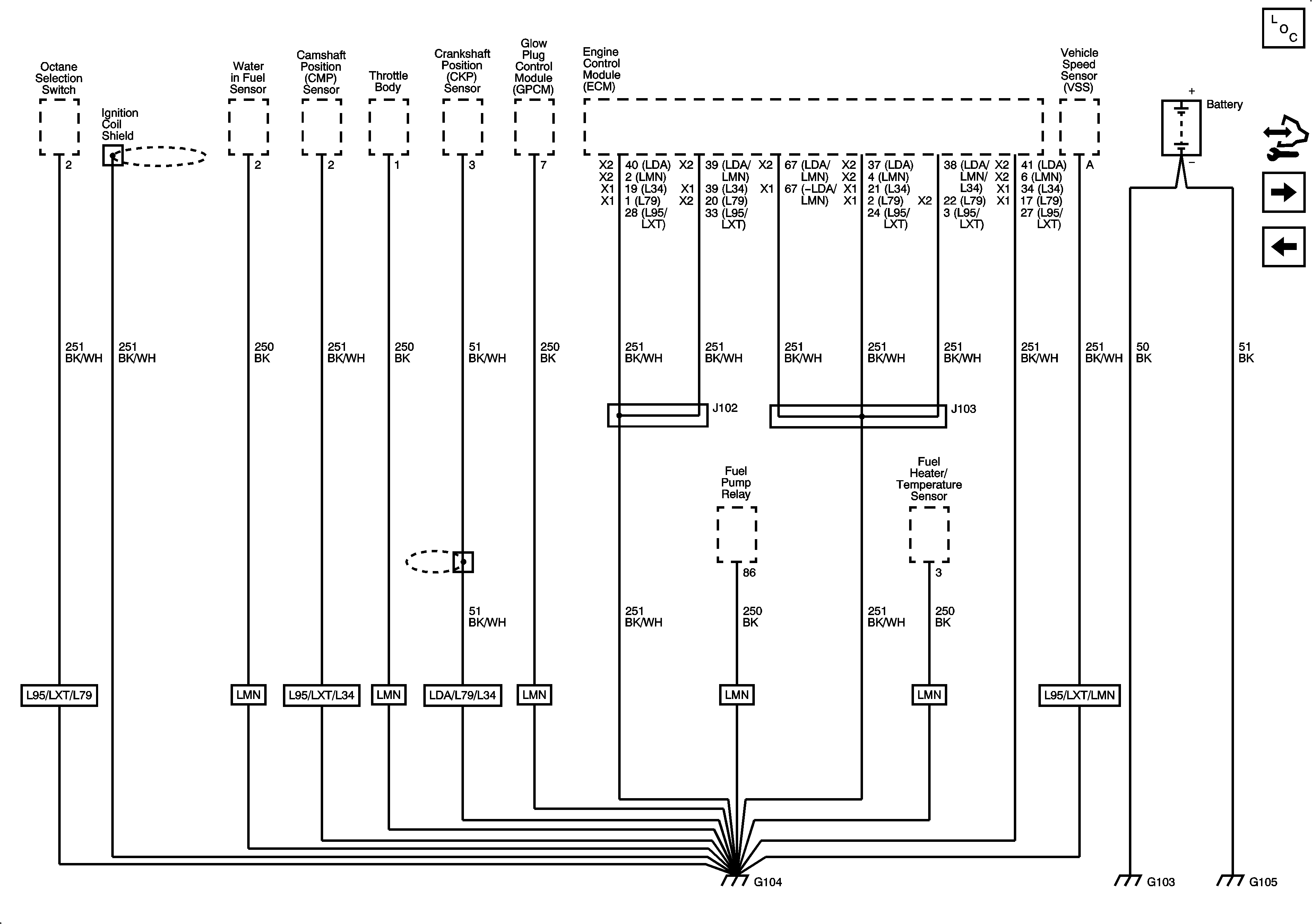

Figure 3:

G104
Object Number: 2159184 Size: FS
Figure 4:

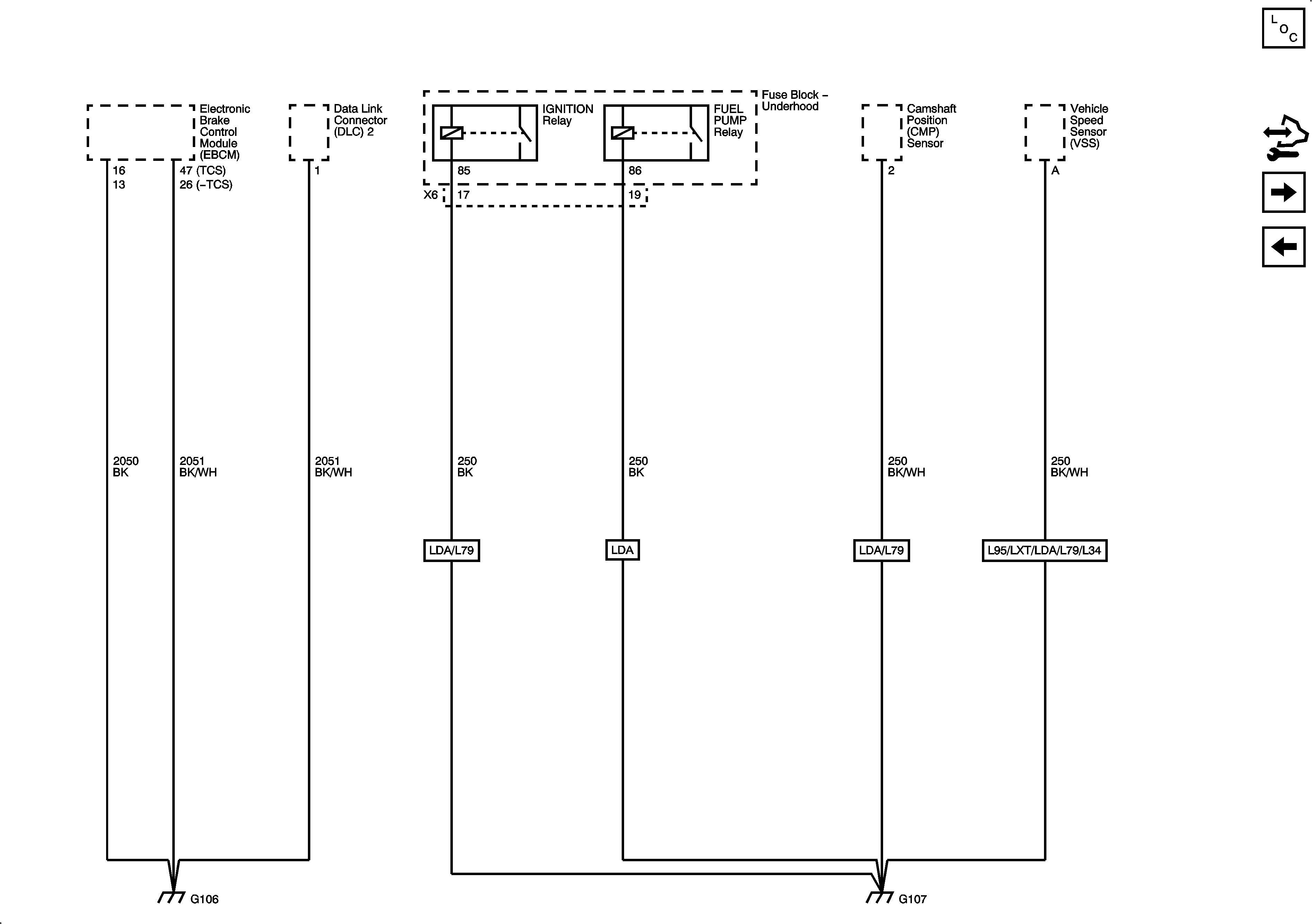

G106, G107
Object Number: 2159185 Size: FS

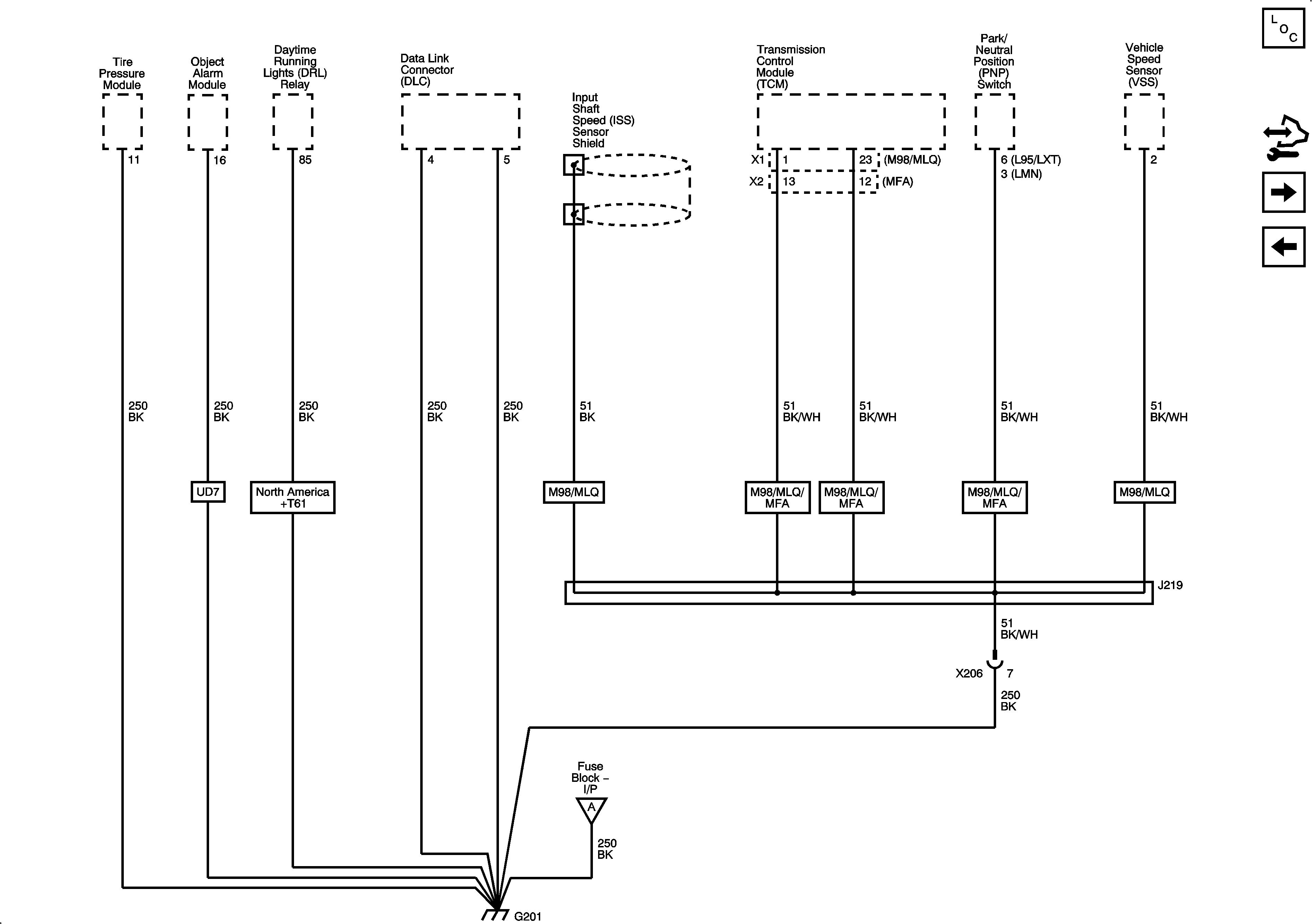

Figure 5:

G201 - 1 of 2
Object Number: 2159186 Size: FS
Figure 6:

G201 - 2 of 2
Object Number: 2159187 Size: FS

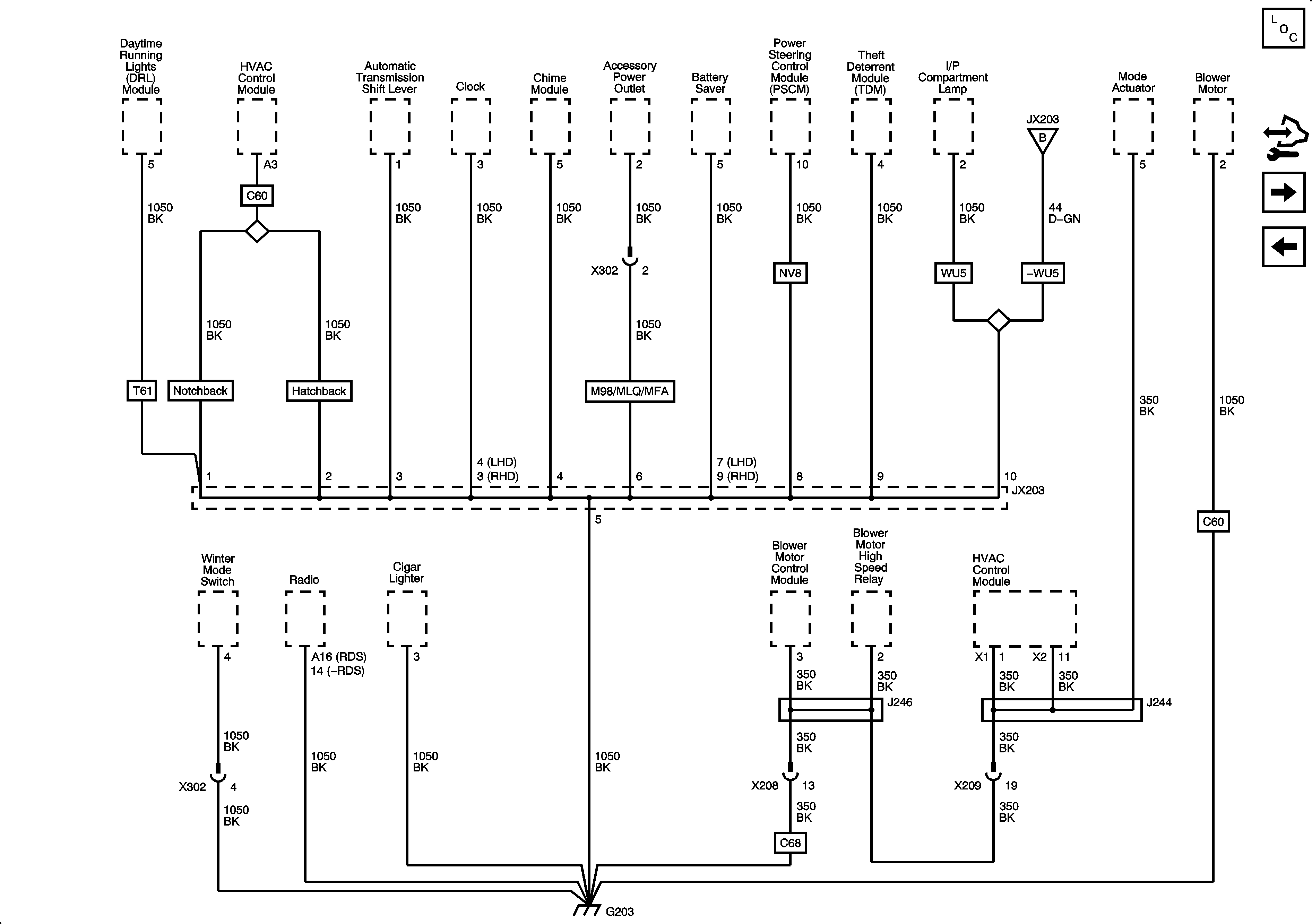

Figure 7:

G203 - 1 of 2
Object Number: 2159189 Size: FS
Figure 8:

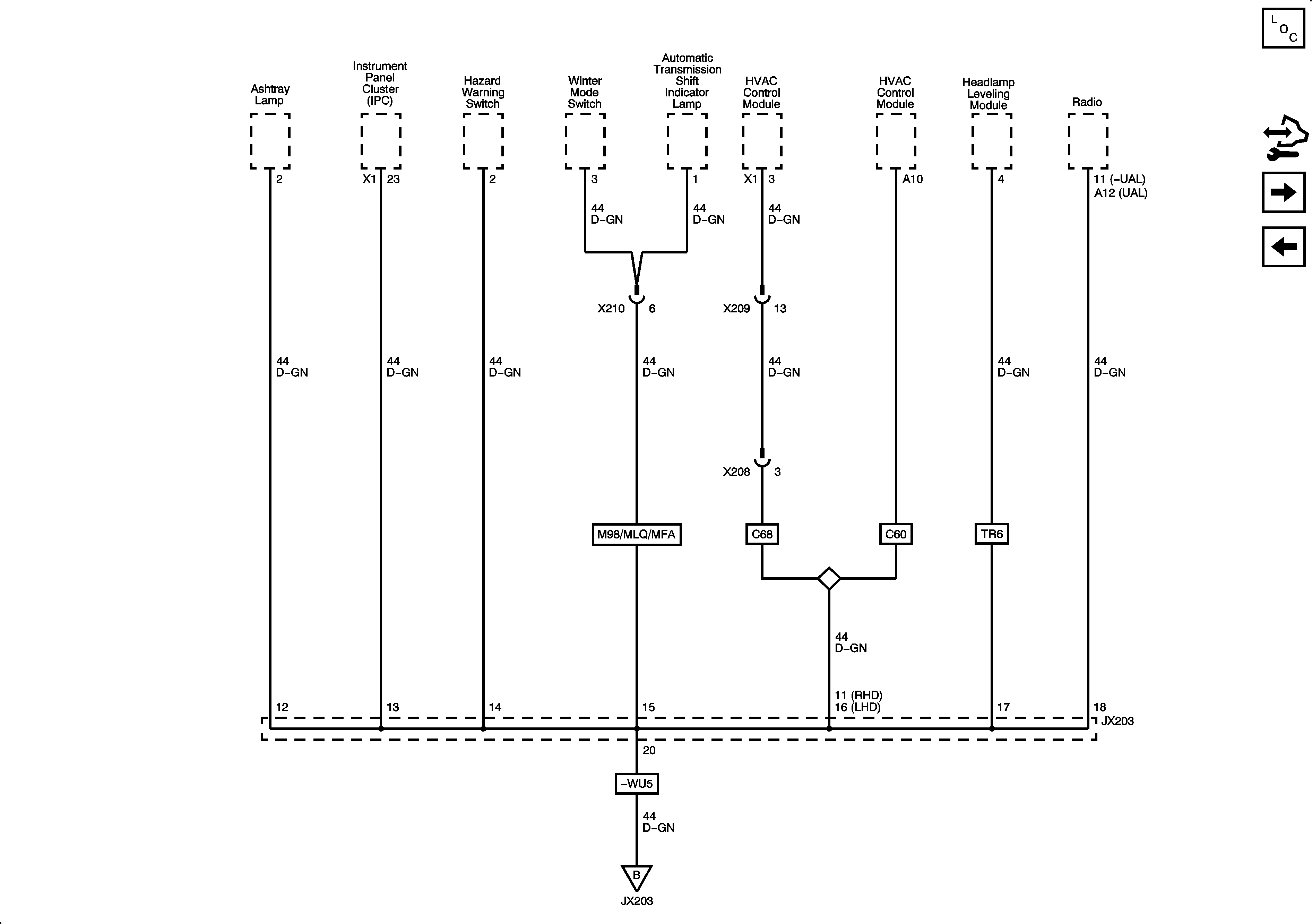

G203 - 2 of 2
Object Number: 2159199 Size: FS

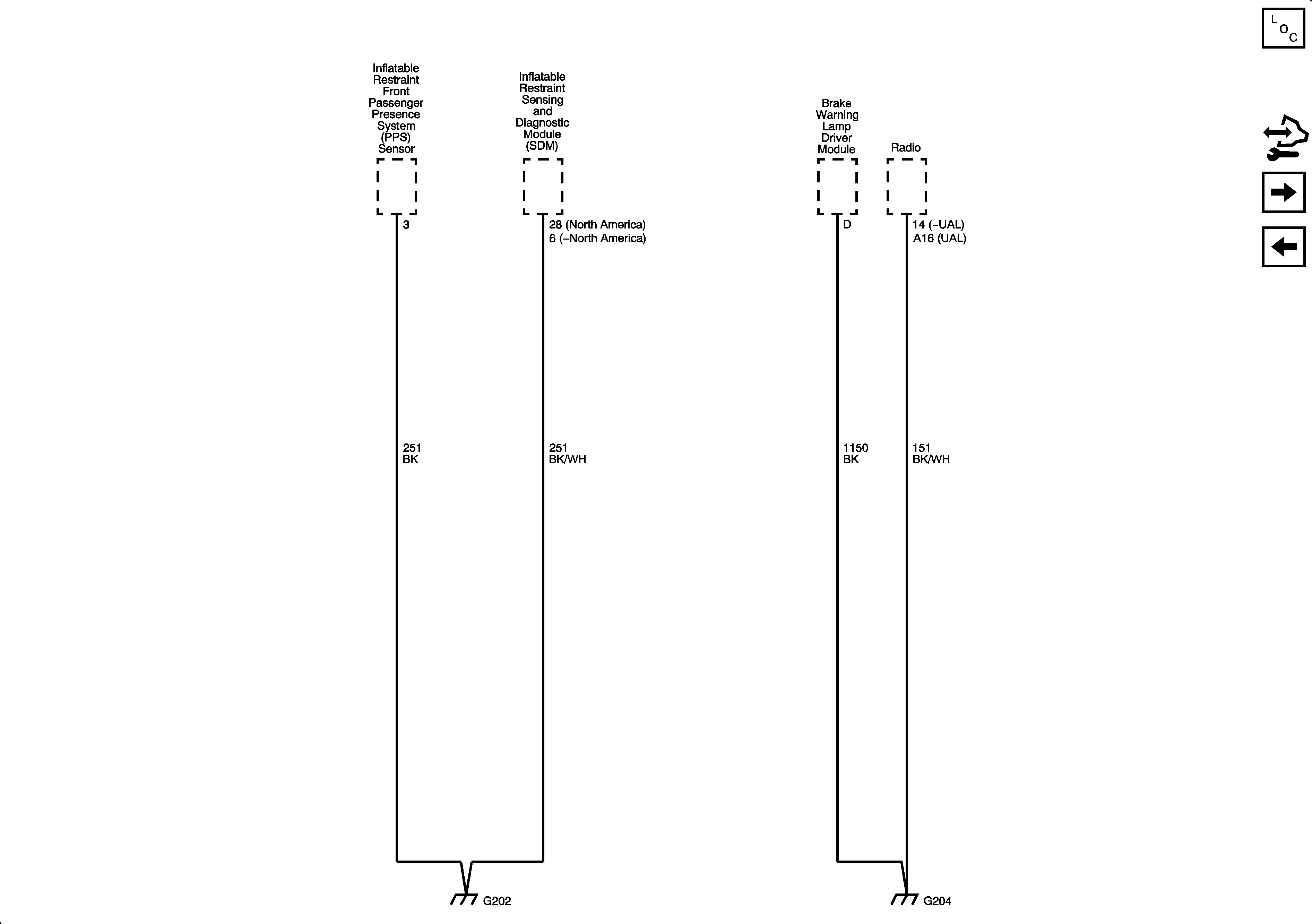

Figure 9:

G202, G204
Object Number: 2159202 Size: FS
Figure 10:

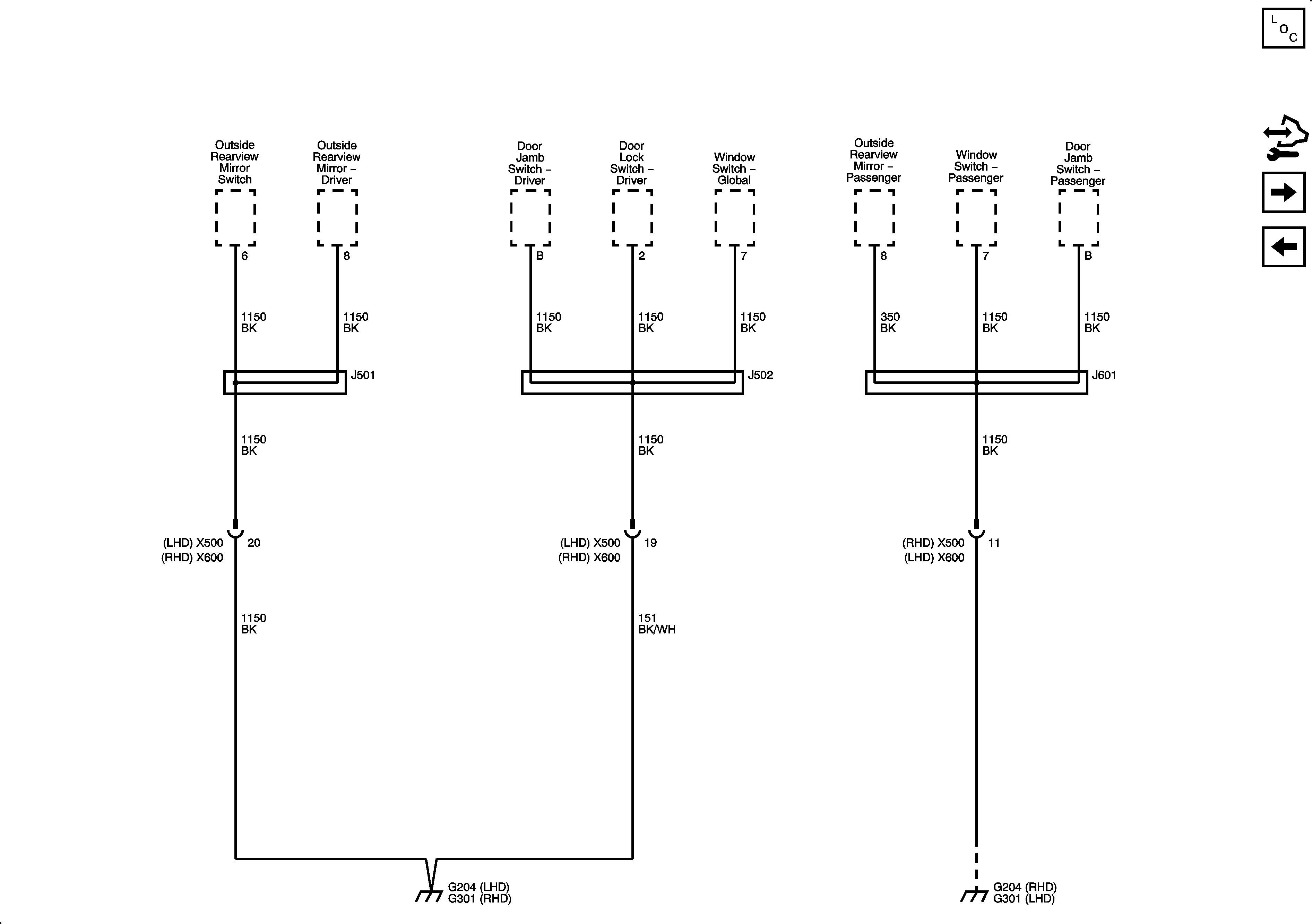

G204, G301
Object Number: 2159204 Size: FS

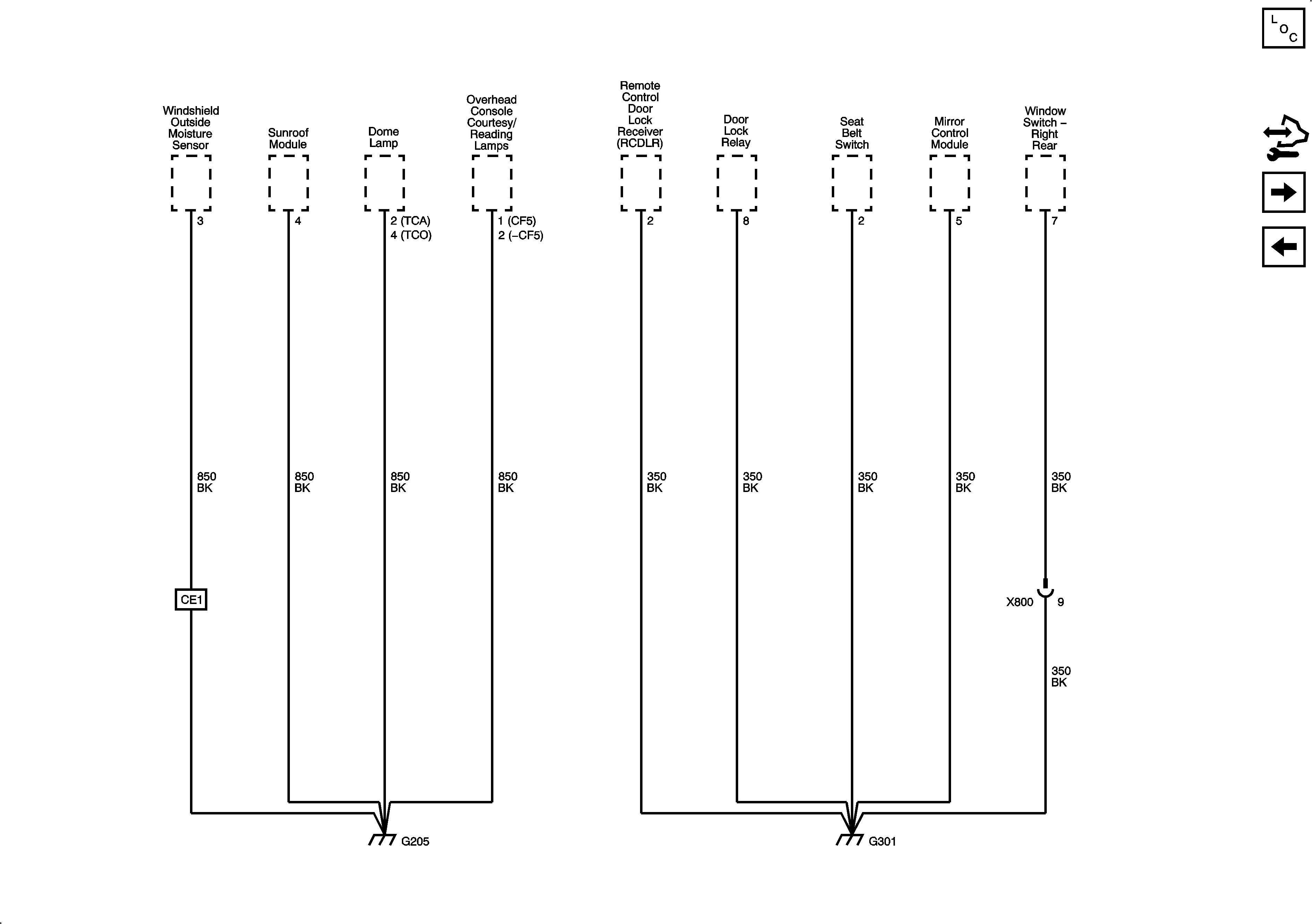

Figure 11:

G205, G301
Object Number: 2159209 Size: FS

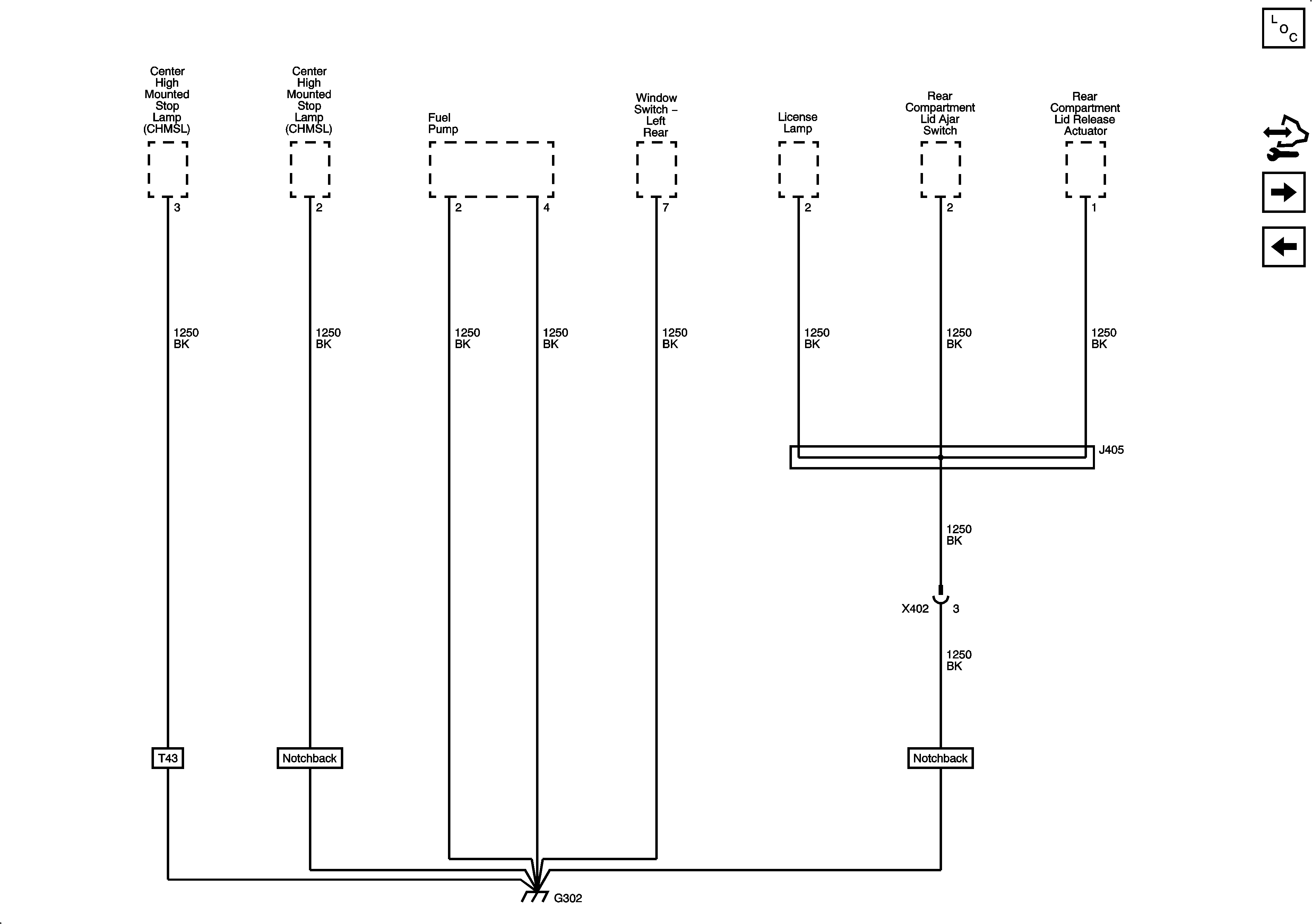

Figure 12:

G302
Object Number: 2159210 Size: FS

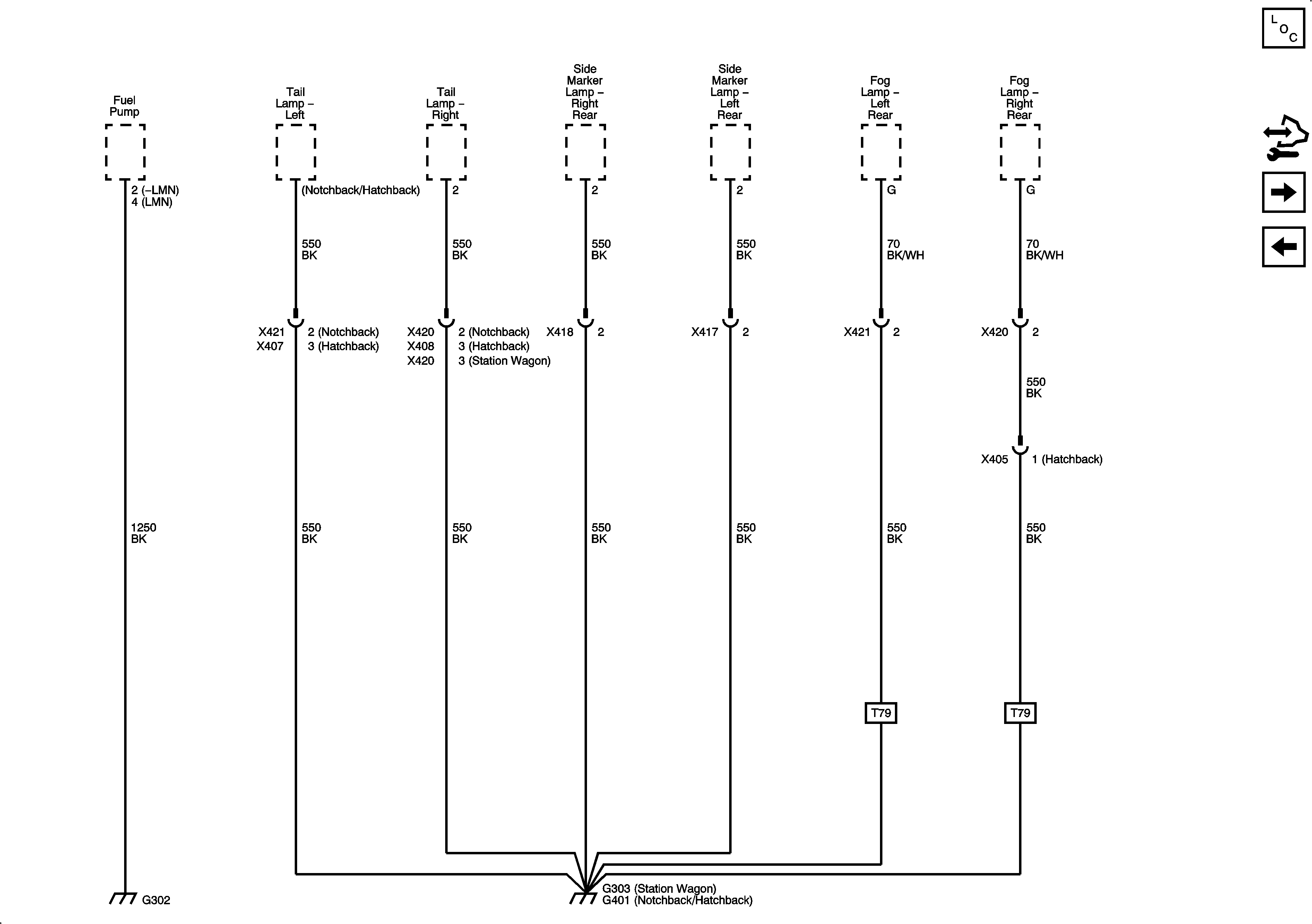

Figure 13:

G303, G401
Object Number: 2159212 Size: FS

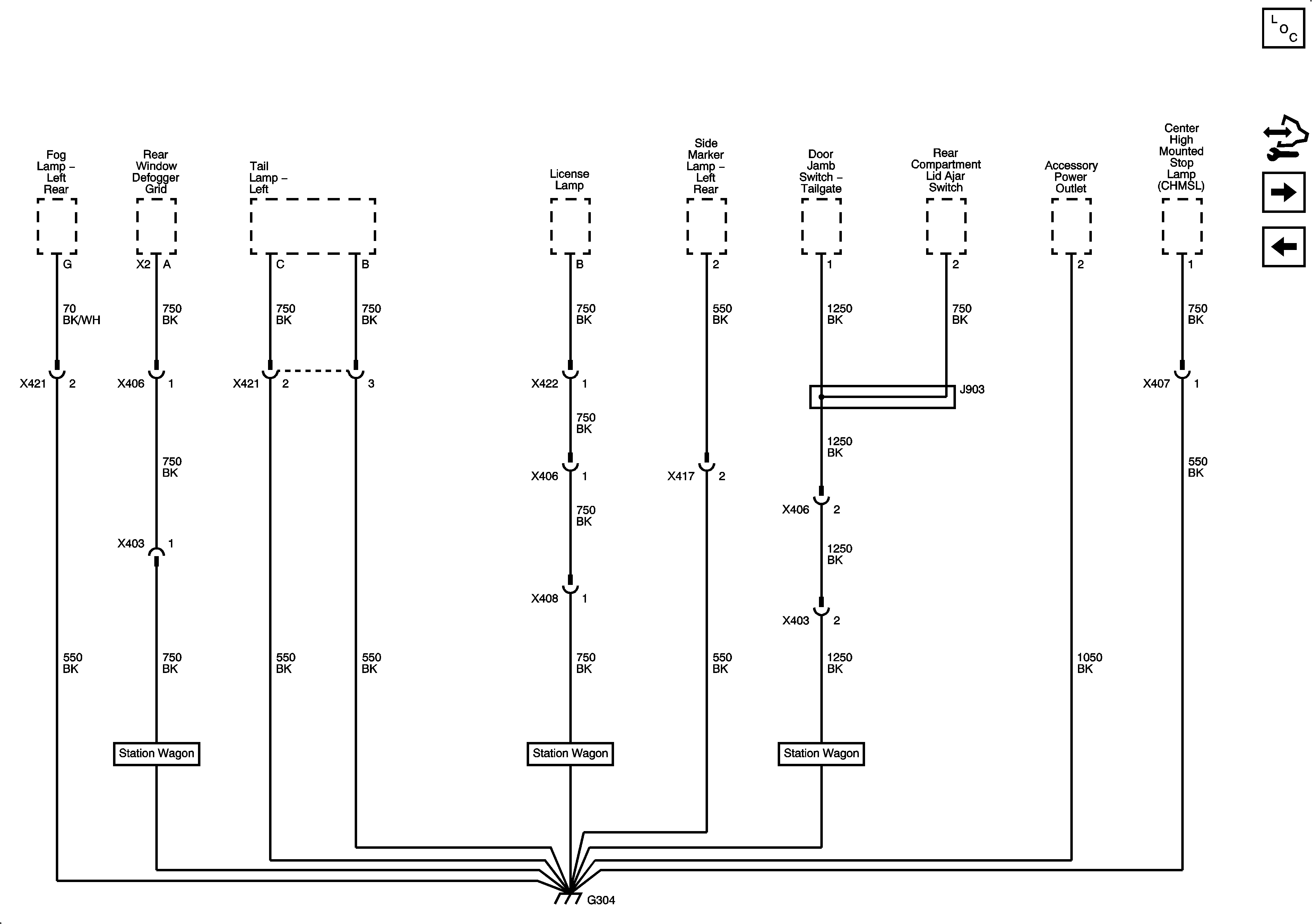

Figure 14:

G304
Object Number: 2159216 Size: FS
Figure 15:

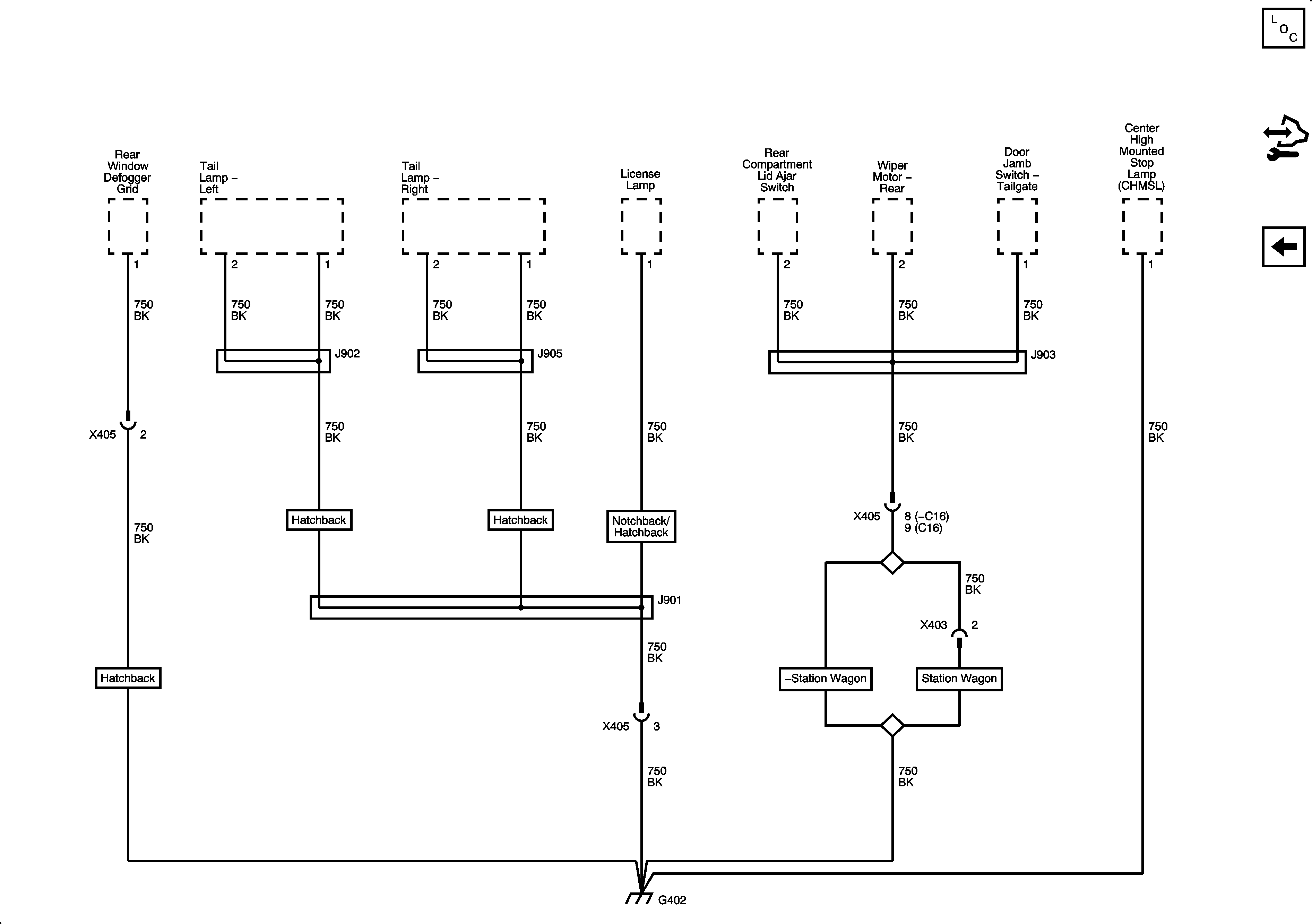

G402
Object Number: 2159219 Size: FS
