Drive and Driven Sprocket, Drive Link, and Park Pawl Installation. Holden Viva (Delta) 2010

For 1990-2009 cars

Makes 🢒 Holden 🢒 2010 🢒 Viva (Delta) 🢒 Transmission 🢒 Automatic Transmission - 6T30/6T40/6T45 🢒 Drive and Driven Sprocket, Drive Link, and Park Pawl Installation

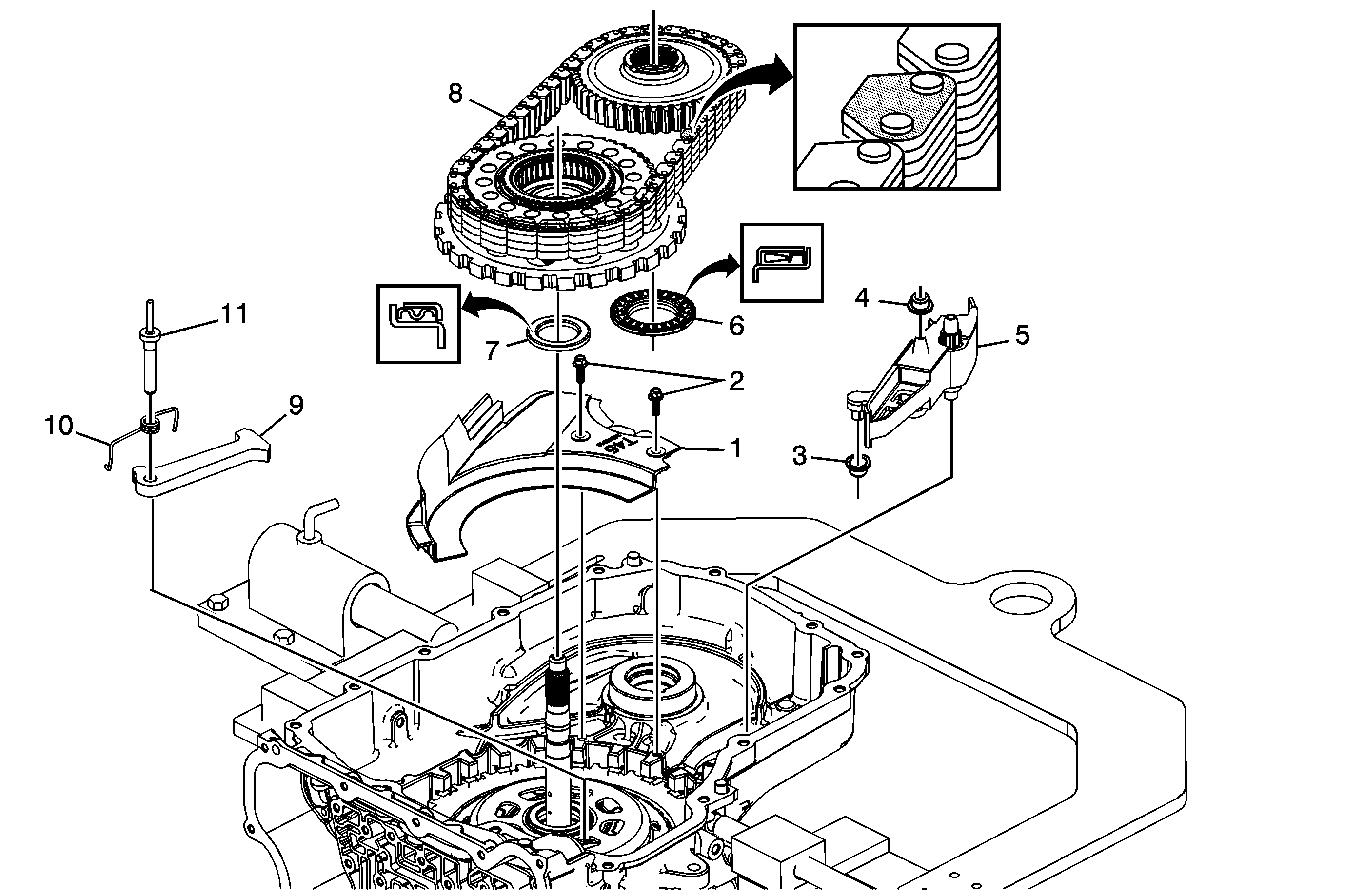

Callout

Component Name

Front Differential Carrier Baffle

Front Differential Carrier Baffle Bolt M6 x 16 (Qty: 2)

Caution: Refer to Fastener Caution in the Preface section.

Tighten
12 N·m (106 lb in)

Drive Link Lube Scoop Seal

Drive Link Lube Fluid Seal

Drive Link Lube Scoop

Driven Sprocket Bearing Assembly

Drive Sprocket Bearing Assembly

Driven Sprocket Assembly, Drive Sprocket Assembly and Drive Link

Tip

•	Install the drive link with the colored links and/or part number facing up.

•	The drive link, drive, and driven sprocket assemblies must be installed at the same time.

•	The ball bearing should spin freely and smoothly.

•	The driven sprocket ball bearing inner race has a slight interference fit with the case. Tap gently with the palm of a hand or a soft tip hammer to install.

Park Pawl

Park Pawl Spring

Park Pawl Shaft

Tip
Check to ensure that the park pawl operates freely and is not binding.
