Makes 🢒 Holden 🢒 2010 🢒 Viva (Delta) 🢒 Transmission 🢒 Automatic Transmission - 6T30/6T40/6T45 🢒 Low and Reverse Clutch Assembly and Low and Reverse Clutch Plate Installation

Object Number: 1891390 Size: MF

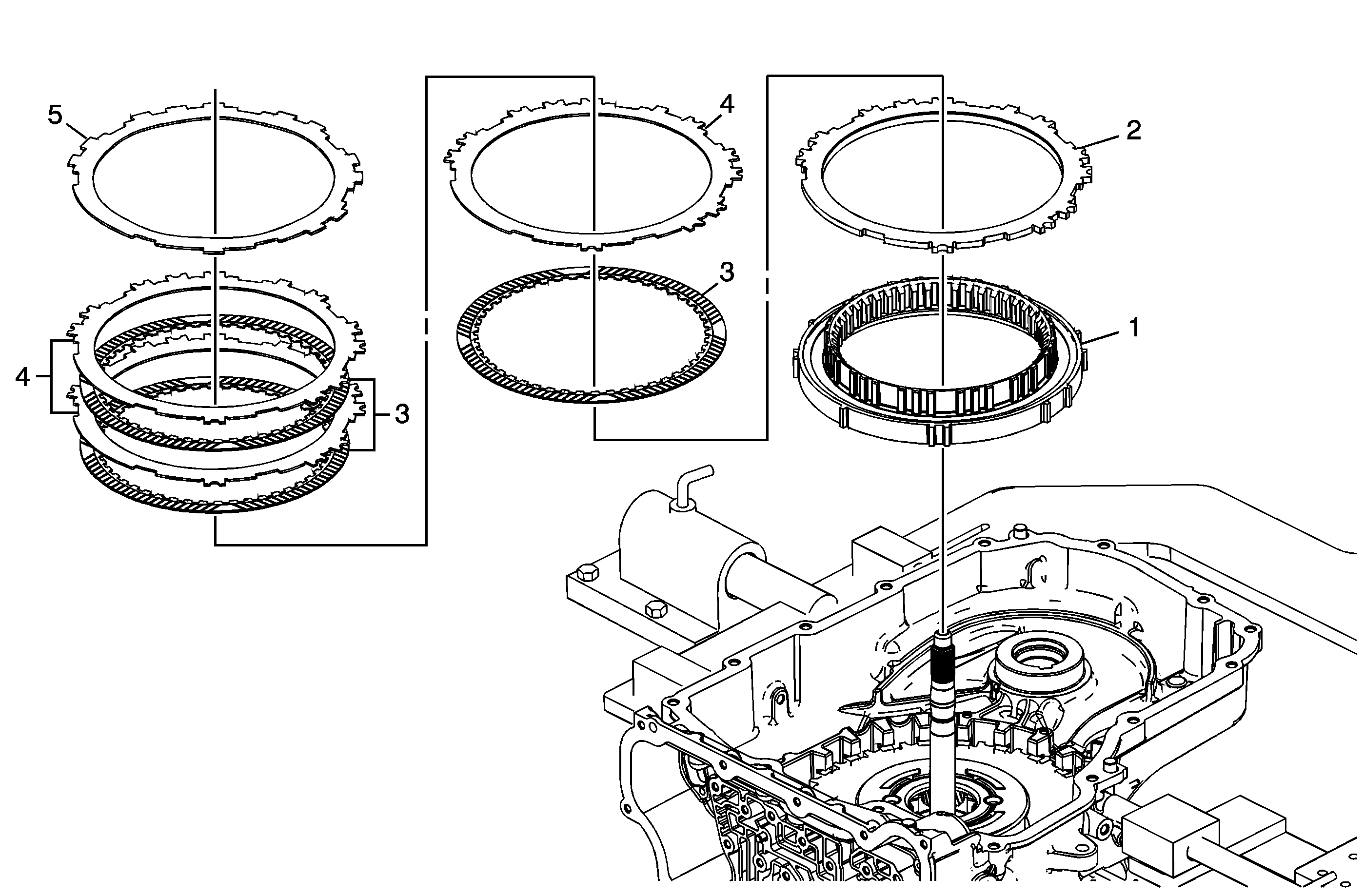

Callout

Component Name

1

Low and Reverse Clutch Assembly (OWC)

Tip

    • The Low and Reverse Clutch Assembly should rotate freely in one direction and lock in the opposite direction.
    • Align the large flat areas of the Low and Reverse Clutch Assembly with the valve body end of the case.

2

Low and Reverse Clutch Backing Plate

3

Low and Reverse Clutch Plate Assembly (Qty: 3)

4

Low and Reverse Clutch Plate (Qty: 3)

Tip
Align the large flat areas of the Low and Reverse Clutch Plate with the valve body end of the case.

5

Low and Reverse Clutch Apply (Waved) Plate

Tip
Align the large flat areas of the Low and Reverse Clutch Apply Plate with the valve body end of the case.
